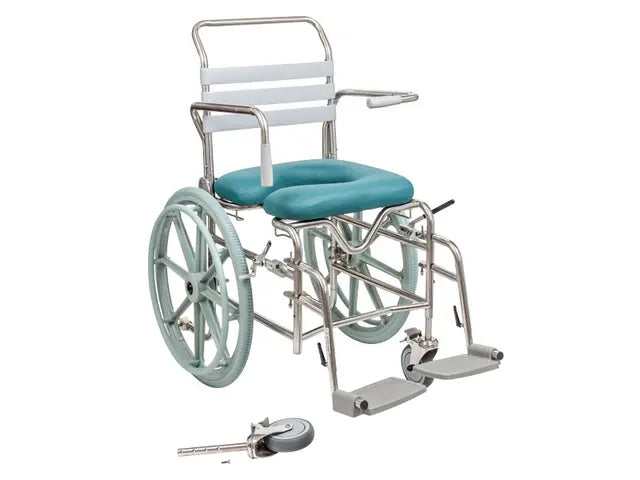

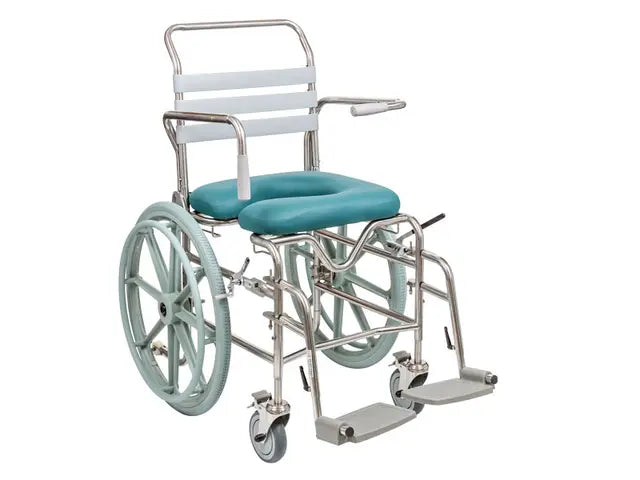

Shower Commode, Self Propelled, Swingaway Footplate, Height Adjustable, 460mm, Juvo
Shower Commode, Self Propelled, Swingaway Footplate, Height Adjustable, 460mm, Juvo
Features
- Height adjustable commode, 4 positions, allows for improved patient care and positioning
- Rear opening enables positioning over the toilet
- Durable 304 grade stainless steel frame, designed to withstand extensive wet area use
- Reinforced seat/back frame
- Removable backrest allows for different backrest options
- Frame design allows for left and right-side cut-out seats without modification
- Deep front trough provide access for easy cleaning
- Selection of seamless PU padded seats & Pressure care seats (open or closed fronts)
- Removable seat using the Juvo registered design "klipps" system
- Flexible, anti-bacterial, non-woven back straps conform to the users shape for support and comfort
- Swing back independent armrests to assist inside transfer and patient access
- Open armrest design allows for the natural hip and thigh prominence, also eliminating 'pinch point' between armrest and seat
- Two position height adjustable armrests
- Safety arms provide user security & safety
- Swing away, removable and height adjustable leg rests with flip up footplates
- Patented "tear safe" leg rest design, prevents injury to users legs
- Height and Depth adjustable rear axle plate allows for 4 seat heights
- Amputee setting on rear axle bracket improves stability
- Stainless steel 125mm castors
- Plastic, quick release, 560mm (22 in.) rear wheels are level with seat for easy transfers
- Push to lock brakes with extended handle
- Stainless steel pan rack guides prevent spillage of pan contents
- Safe working load and serial number permanently etched in stainless plate for easy asset identification
- This product is tested and certified to Australian Standards AS/NZS 3973: 2009
- Please note a seat must be purchased separately
Specifications
| Item | Shower Commode |
| Type | Self Propelled |
| Brand | Juvo |
| Armrest Height From Seat (mm) | 200 - 240 |
| Backrest Height From Seat (mm) | 340 |
| Max User Weight (kg) | 200 |
| Overall Depth (mm) | 1000 |
| Overall Height (mm) | 930 - 1020 |
| Overall Width (mm) | 660 (600 when push rims removed & axle brackets reversed) |
| Seat Depth (mm) | 430 |
| Seat Width (mm) | 460 |
| Unit Weight (kg) | 19.35 |
| Warranty (months) | 60 [12 on castors, fixings, seat, straps, and wheels] |
| Width Between Arms (mm) | 490 |
| Anterior Seat Height (mm) | 505 - 595 |
| Posterior Seat Height (mm) | 475 - 565 |
| Seat to Heel Height (mm) | 410 - 575 |
| Toilet Bowl Clearance Height (mm) | 500 |
| Toilet Bowl Clearance Width (mm) | 410 |
| Wall to Rear of Aperture (mm) | 325 |
