Lifting Hoist, Ansa Sonata 150, Manual Leg (SWL150Kg)
Lifting Hoist, Ansa Sonata 150, Manual Leg (SWL150Kg)

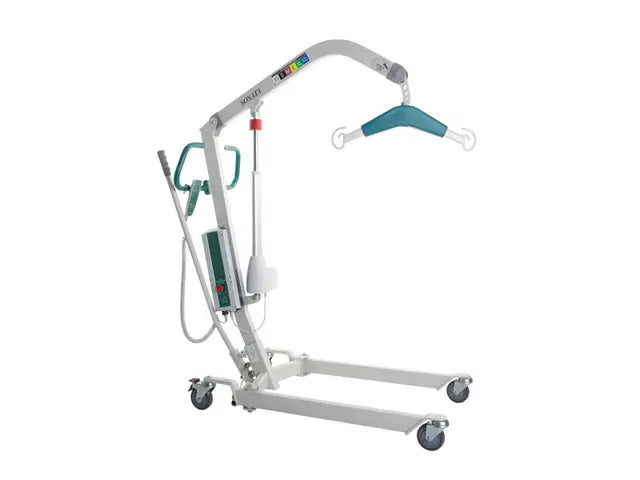

- Lightweight compact mobile patient lifting hoist
- Designed for domestic and institutional use
- Durable steel construction
- Space Link Technology
- Outstanding lifting range
- Optimised spacial area for carer and patient
- Enhanced floor lifting capability
- Interchangeable spreader bar and pivot frame configuration
- Ergonomically designed push handle

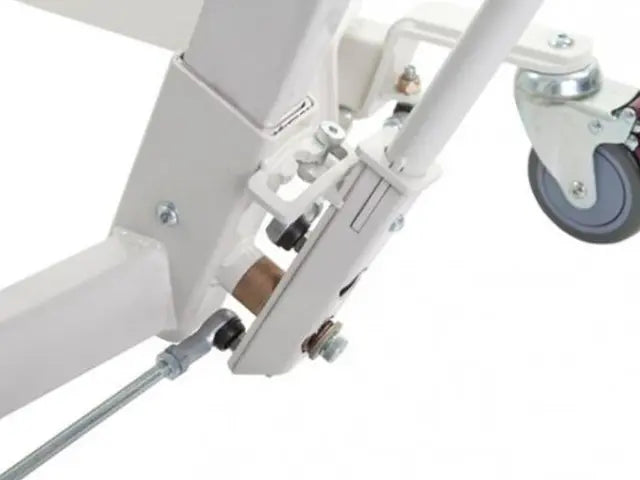

- Easy to use lever for leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Designed and tested to ASA ISO 10535-2002
- Australian made

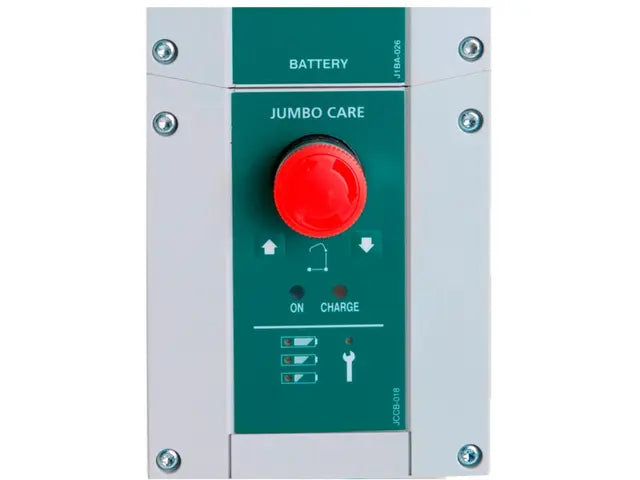

- Features Linak Jumbo Care advanced diagnostic control system
- Improved servicing schedule
- Anti-entrapment feature
- Emergency stop button
- 150kg safe working load
- Please note a yoke must be purchased separately
Specifications
| Item | Lifting Hoist |
| Brand | Allegro |
| Model | Sonata 150 |
| Base Length (mm) | 1005 |
| Base Width Adjustment (mm) | Manual |
| External Base Width Closed (mm) | 605 |
| External Base Width Open (mm) | 1070 |
| Hoist Reach at Max Height (mm) | 555 |
| Internal Base Width Closed (mm) | 510 |
| Internal Base Width Open (mm) | 975 |
| Max Height Yoke (mm) | 1735 |
| Max Hoist Reach (mm) | 875 |
| Max User Weight (kg) | 150 |
| Min Height Yoke (mm) | 420 |
| Min Hoist Reach (mm) | 555 |
| Min Storage Height (mm) | 1260 |
| Under Base Height (mm) | 55 |
| Under Bed Clearance (mm) | 130 |
| Unit Weight (kg) | 41 |
| Warranty (months) | 24 |
