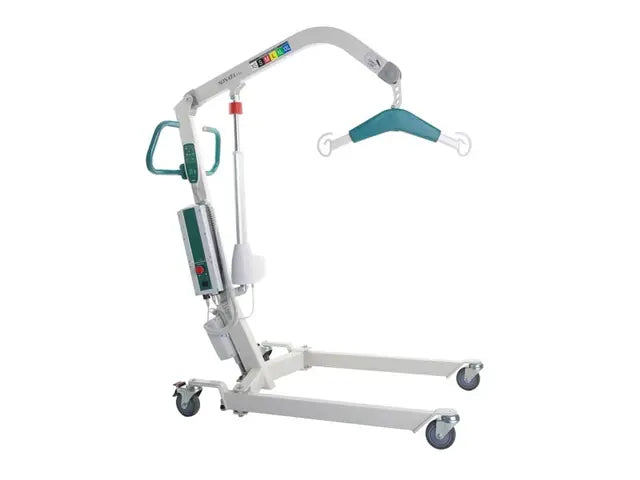

Lifting Hoist, Ansa Sonata 150, Electric Leg (SWL150Kg)
Lifting Hoist, Ansa Sonata 150, Electric Leg (SWL150Kg)
Features
- Lightweight compact mobile patient lifting hoist
- Designed for domestic and institutional use
- Durable steel construction
- SpaceLink® Technology
- Outstanding lifting range
- Optimised spacial area for carer and patient
- Enhanced floor lifting capability
- Interchangeable spreader bar and pivot frame configuration
- Ergonomically designed push handle
- Powered leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Designed and tested to ASA ISO 10535-2002
- Australian made

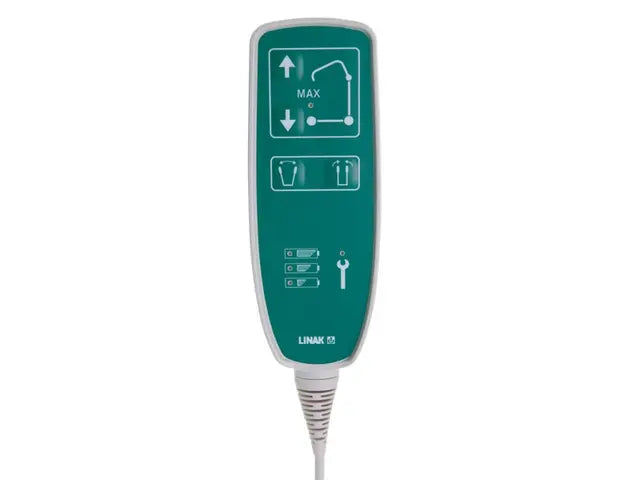

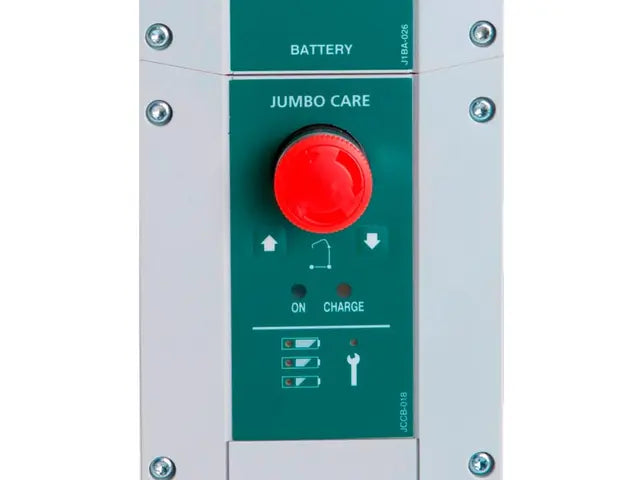

- Features Linak Jumbo Care advanced diagnostic control system
- Improved servicing schedule
- Anti-entrapment feature
- Emergency stop button
- 150kg safe working load
- Please note a yoke must be purchased separately
Specifications
| Item | Lifting Hoist |
| Brand | Allegro |
| Model | Sonata 150 |
| Base Length (mm) | 1100 |
| Base Width Adjustment (mm) | Electric |
| External Base Width Closed (mm) | 670 |
| External Base Width Open (mm) | 1075 |
| Hoist Reach at Max Height (mm) | 515 |
| Internal Base Width Closed (mm) | 570 |
| Internal Base Width Open (mm) | 970 |
| Max Height Yoke (mm) | 1735 |
| Max Hoist Reach (mm) | 865 |
| Max User Weight (kg) | 150 |
| Min Height Yoke (mm) | 400 |
| Min Hoist Reach (mm) | 515 |
| Min Storage Height (mm) | 1250 |
| Under Base Height (mm) | 55 |
| Under Bed Clearance (mm) | 130 |
| Unit Weight (kg) | 41 |
| Warranty (months) | 24 |
