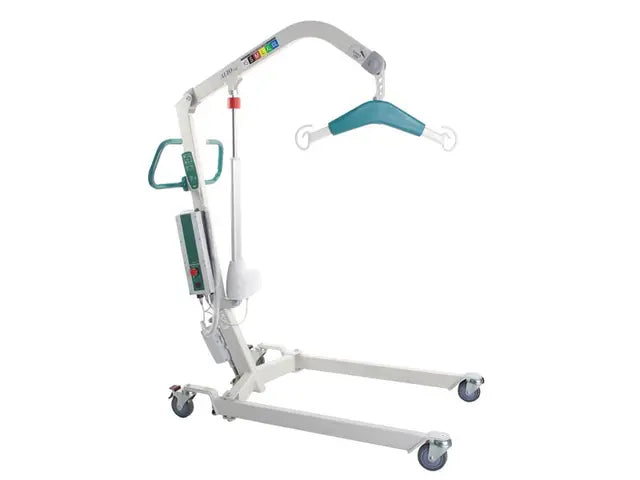

Lifting Hoist, Ansa Alto 200, Electric Leg
Lifting Hoist, Ansa Alto 200, Electric Leg
- Heavy duty medium sized mobile patient lifting hoist
- Designed for institutional and high capacity homecare use
- Durable steel construction
- SpaceLink® Technology
- Outstanding lifting range
- Optimised spacial area for carer and patient
- Enhanced floor lifting capability
- Interchangeable spreader bar and pivot frame configuration
- Ergonomically designed push handle

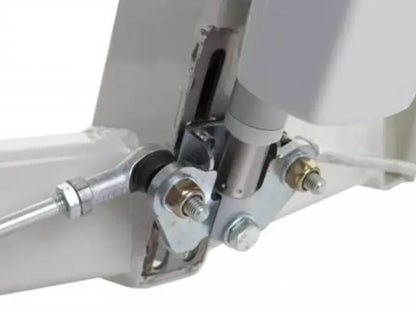

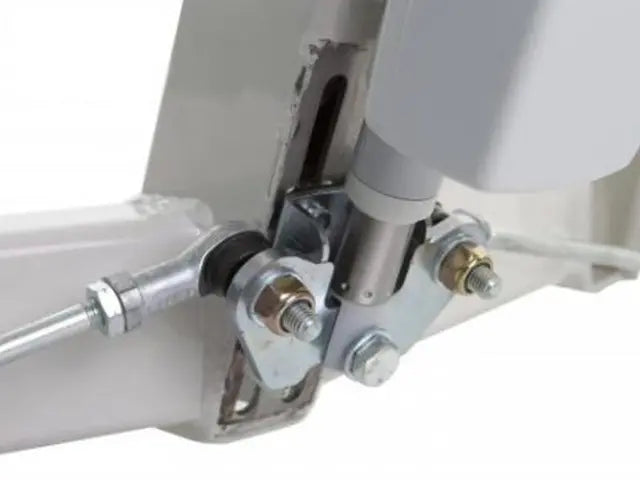

- Powered leg adjustment
- 100mm castors
- Full selection of slings and accessories
- Designed and tested to ASA ISO 10535-2002
- Australian made

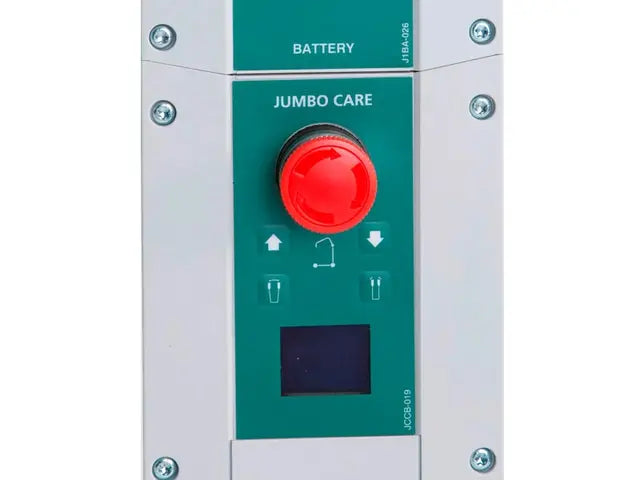

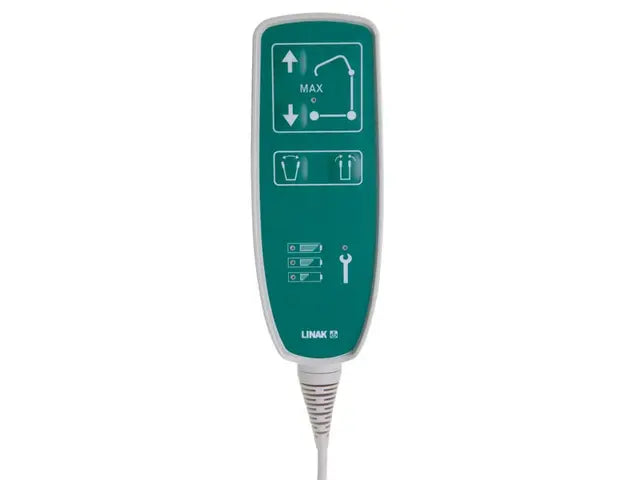

- Features Linak Jumbo Care advanced diagnostic control system
- Improved servicing schedule
- Anti-entrapment feature
- Emergency stop button
- 200kg safe working load
- Please note a yoke must be purchased separately
Specifications
| Item | Lifting Hoist |
| Brand | Allegro |
| Model | Alto 200 |
| Base Length (mm) | 1150 |
| Base Width Adjustment (mm) | Electric |
| External Base Width Closed (mm) | 700 |
| External Base Width Open (mm) | 1130 |
| Hoist Reach at Max Height (mm) | 515 |
| Internal Base Width Closed (mm) | 600 |
| Internal Base Width Open (mm) | 1030 |
| Max Height Yoke (mm) | 1920 |
| Max Hoist Reach (mm) | 1060 |
| Max User Weight (kg) | 200 |
| Min Height Yoke (mm) | 300 |
| Min Hoist Reach (mm) | 610 |
| Min Storage Height (mm) | 1350 |
| Under Base Height (mm) | 55 |
| Under Bed Clearance (mm) | 130 |
| Unit Weight (kg) | 46 |
| Warranty (months) | 24 |
